General Introduction:

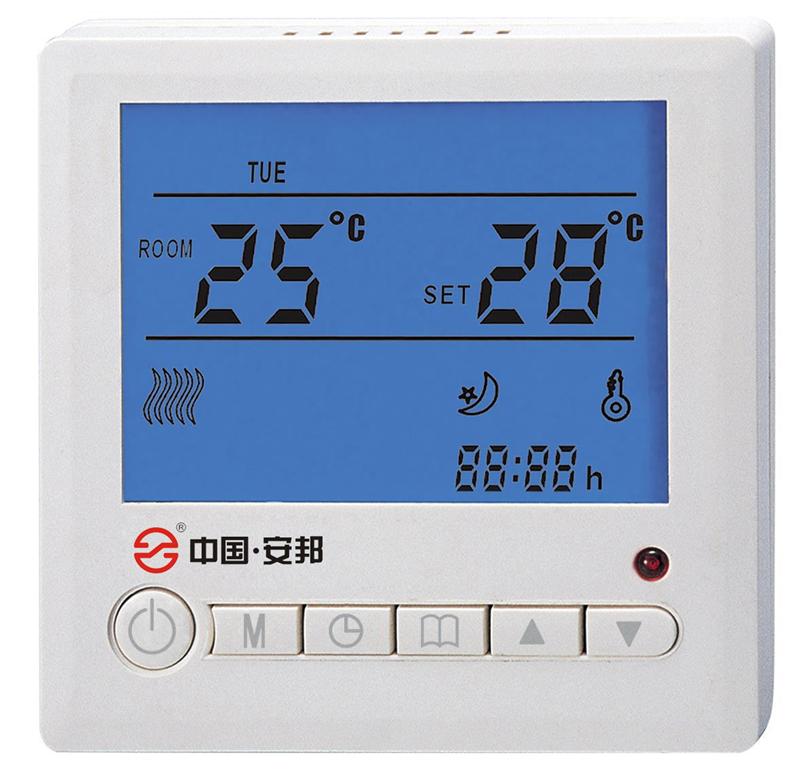

It is a programmable heating thermostat room with dual-temperature and controlling LCD display. Along with circulating periodically with 6 time periods per day, it has different temperature settings, and the controlling modes can be timing programmed in manual and temporary control. It is applicable for electric heating control (heating cable, electric heating) or electric valve control in the area of hot water heating system.

Main applications:

The control modes of this programmable room heating thermostat with six time periods per day and different temperature settings are time programming, manual control and temporary control. It is applicable for electric heating control (heating cable, electric heating) or electric valve control in the area of hot water heating system.

Features:

Integrated and directly wall mounted with standard Type 86 box

Medium size LCD tilted interface, easier for reading

Zero power consumption for shutdown, completely cutting off the power

Periodic circulation, time programming control with six time periods per day and different temperature settings

Selection of sensors: built-in sensor for single temperature control, external sensor for single temperature control, internal control, external limit dual temperature control

When the time period temperature is set as “OFF”, it indicates that the controller is closed.

The child lock easy to be operated can prevent altering the settings at free will.

Temperature measurement sensor fault alarm/Err

Advanced programming (setting) function: sensor selection, selection of rest day, the maximum temperature limit, the lowest temperature limit, preheating or not, temperature measurement accuracy correction

Technical parameters:

Voltage: See the label attached to the product

Power consumption: 2W

Temperature control range: 5°-35°℃

Switching deviation: ±0.5℃

Protection level of the housing: IP20

Material of the housing: flame retardant PC
